1.Wide Temperature Range

Capable of handling extreme temperatures from -20°C to 550°C, this thermal imaging device is suitable for both low-temperature environments and high-temperature scenarios, ensuring versatile application use.

2.Adjustable Emissivity Settings

Emissivity range from 0.01 to 1.00 allows precise thermal imaging for different materials, optimizing accuracy and adaptability for professional measurements.

3.Compact TFT Display

Equipped with a 2.4-inch TFT display, featuring 320×240 resolution, providing clear and detailed imagery for quick analysis and real-time temperature readings.

4.Multi-Color Palette Modes

The thermal imaging tool integrates multiple color palette options, including Rainbow, White Hot, Iron Red, and Fusion, for visualization flexibility tailored to specific tasks.

5.Portable Design with USB-C Charging

Lightweight and powered by a rechargeable Lithium battery via USB-C, offering ease of mobility and long-lasting performance for on-the-go operations.

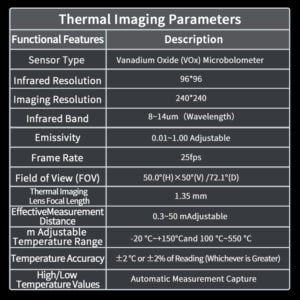

Sensor Type: Vanadium Oxide (VO) Microbolometer
Infrared Resolution: 96×96
Imaging Resolution: 240×240
Infrared Band: 8–14μm (Wavelength)
Emissivity: 0.01–1.00 Adjustable
Frame Rate: 25fps
Field of View (FOV): 50.0°(H) × 50.0°(V) / 72.1°(D)
Thermal Imaging Lens Focal Length: 1.35mm
Effective Measurement Distance: 0.3–50m Adjustable
Adjustable Temperature Range: -20°C to +150°C and 100°C to +550°C
Temperature Accuracy: ±2°C or ±2% of Reading (Whichever is Greater)

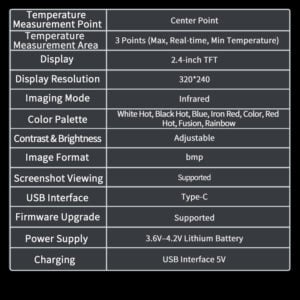

Display: 2.4-inch TFT Screen
Display Resolution: 320×240
Imaging Mode: Infrared
Color Palette: White Hot, Black Hot, Blue, Iron Red, Color, Red Hot, Fusion, Rainbow
Image Format: BMP
USB Interface: Type-C
Power Supply: 3.6V–4.2V Lithium Battery
Charging: USB Interface 5V

CE ROHS

1 × ZOYI ZT-R02 Infrared Thermography Device
1 × USB Type-C Cable
2 × Multimeter Probes
1 × User Manual
1 × Storage Bag

V012 Version Upgrade details:

1.Optimized operational efficiency to enhance stability

V013 Version Upgrade details:

1. Add quick startup in multimeter mode

2. Fix the automatic shutdown issue

V014 Version Upgrade details:

1. Incorrect menu name for modifying English display settings

2. Modify the English temperature tracking menu name incorrectly

3. Add operation prompts after USB activation

4. Modify USB vocabulary errors

5. Modify formatting vocabulary errors

6. Fix language reset error after restoring factory settings

7. Incorrect description of modifying and restoring factory settings

8. Add automatic shutdown prompt

9. Add the option to disable automatic shutdown timing

V015 Version Upgrade details:

1. Fix the incorrect display of battery level in the quick startup mode of the multimeter

2. Added automatic shutdown sound prompt (takes effect after turning on the system sound)

3. Fix the transient display abnormality of the multimeter mode value during fast startup

4. Modify the brightness of the startup screen to the set value in thermal imaging mode
